ASUS

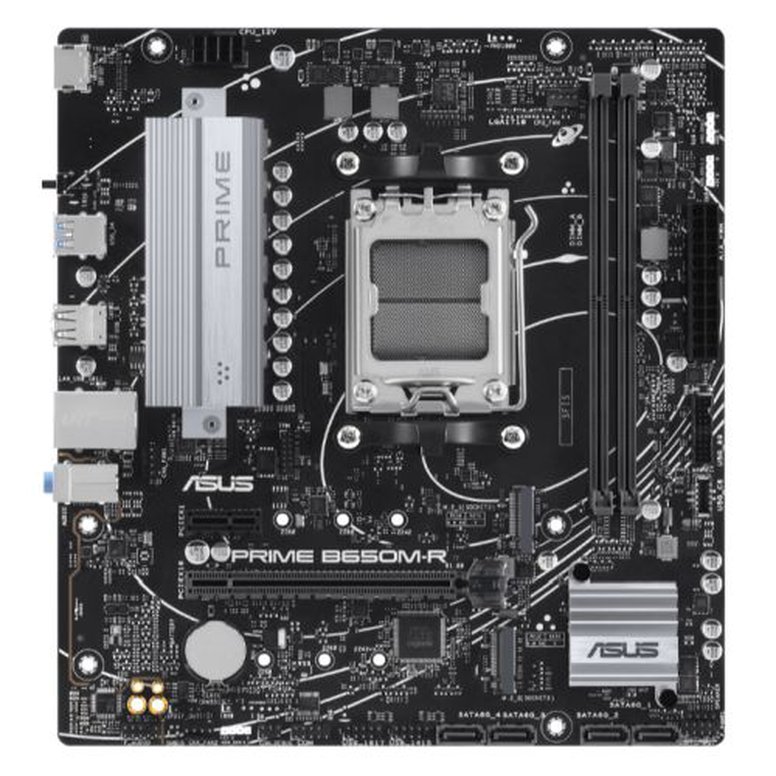

Asus PRIME B650M-R, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, 2.5G LAN, PCIe4, 2x M.2
£112.26
Out of stock
Asus PRIME B650M-R, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, 2.5G LAN, PCIe4, 2x M.2
ASUS
Asus PRIME B650M-R, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, 2.5G LAN, PCIe4, 2x M.2
£112.26
Out of stock
Product Details



AMD B650 Micro-ATX motherboard, DDR5, PCIe 4.0 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps Type-C®, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync

  • AM5 Socket for AMD Ryzen™ Desktop Processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C®
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences





Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





Cooling

Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.





Customisation

The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.








                                             ** Click here for full product details **

Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM5
  • Chipset: AMD B650
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR5 (Dual Channel)
    ECC, Un-buffered Memory
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II"
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 7200+(OC)
  • Maximum Memory: 96GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    1 x PCIe 4.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
    1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  • RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
  • Wireless: -
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    2 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    1 x USB 5Gbps USB Type-C
    2 x USB 5Gbps
    4 x USB 2.0
  • Back Panel I/O Ports: 2 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x HDMI
    1 x Realtek 2.5Gb Ethernet
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 5Gbps Type-C
    1 x USB 5Gbps
    2 x USB 2.0
    3 x Addressable Gen2
    1 x Clear CMOS
    1 x COM Port
  • .: 1 x Front Panel Audio
    1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    2 x M.2 Anchors
    1 x Quick start guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.1000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
