ASROCK
Asrock Z790 PG SONIC, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 5x M.2, Animated Sonic Ring
£236.53
Asrock Z790 PG SONIC, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 5x M.2, Animated Sonic Ring
ASROCK
Asrock Z790 PG SONIC, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 5x M.2, Animated Sonic Ring
£236.53
Product Details

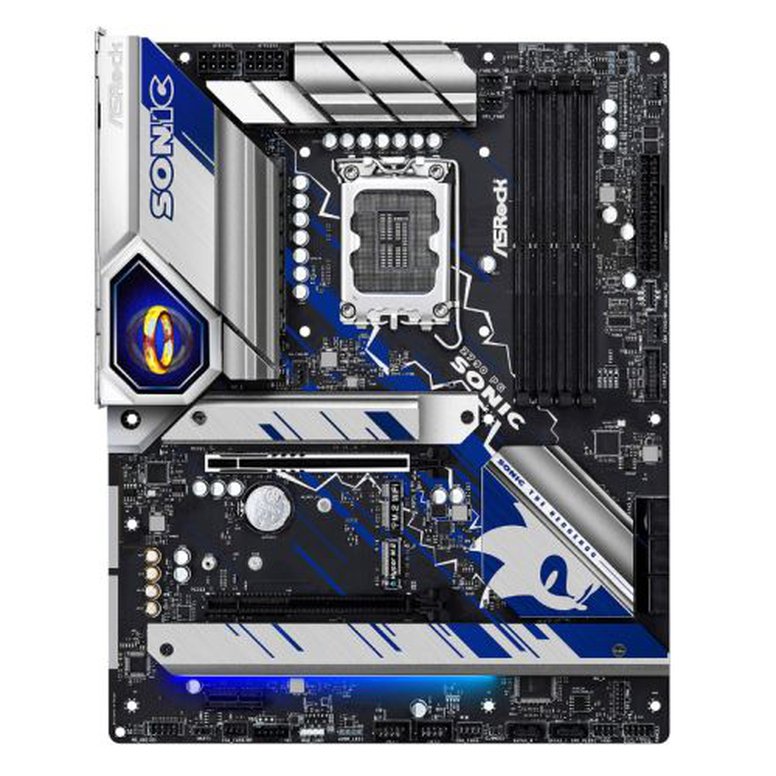

ASRock Z790 PG SONIC, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog.


A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.

Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.


  • 14+1+1 Phase Design With Dr.MOS - Optimized VRM design for solid performance
  • Lightning Gaming Ports - Mice/Keyboard control with lower jitter and latency
  • Blazing M.2[PCIe Gen5 x4] - Blazing Fast Data Transfer and Great Heat Dissipation
  • PCIe 5.0 + Surface-Mount Tech - Ready to unleash the full potential of future high end graphic cards.
  • DDR5 Memory - Supports DDR5 memory with max. 128GB capacity.
  • DDR5 XMP & EXPO Support - Extreme Memory Overclocking
  • Killer 2.5G Networking - Killer™ Ethernet E3100
  • USB 3.2 Gen2x2 Type-C Header - Front USB 3.2 Gen2x2 Type-C
  • Nahimic Audio - Offers you the most engaging listening experience, vibrant and rich with details.
  • Polychrome SYNC - Allows users to synchronize RGB LED devices and create their own unique lighting effects.



Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z790
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6800+(OC)
  • Maximum Memory: 256GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
    1 x PCIe 4.0 x16 (supports x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 8 x SATA III
    1 x M.2 (2280) - PCIe
    1 x M.2 (2280) - PCIe
    1 x M.2 (2260/2280) - PCIe
    1 x M.2 (2260/2280) - PCIe
    1 x M.2 (2260/2280) - PCIe
  • RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
  • Wireless: -
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: "1 x USB 3.2 Gen2 Type-A (at back)
    1 x USB 3.2 Gen1 Type-C (at back)
    8 x USB 3.2 Gen1 (4 at back*, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2x2 Header

    *USB32_56 are Lightning Gaming Ports"
  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x HDMI
    1 x DisplayPort 1.4
    2 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen1 Type-C
    4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    1 x Chassis Fan
    4 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Panel Audio
    1 x Thunderbolt AIC
  • .: 2 x USB 2.0
    1 x USB 3.2 Gen1
    1 x Front Panel Type-C USB 3.2 Gen2x2
  • Accessories: 1 x User Manual
    2 x SATA Data Cables
    5 x Screws for M.2 Sockets
  • Additional Features: See Overview / Video
  • Package Type: Retail
  • Package Weight: 2.4000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#RGB Lighting: Out of the box RGB lighting
