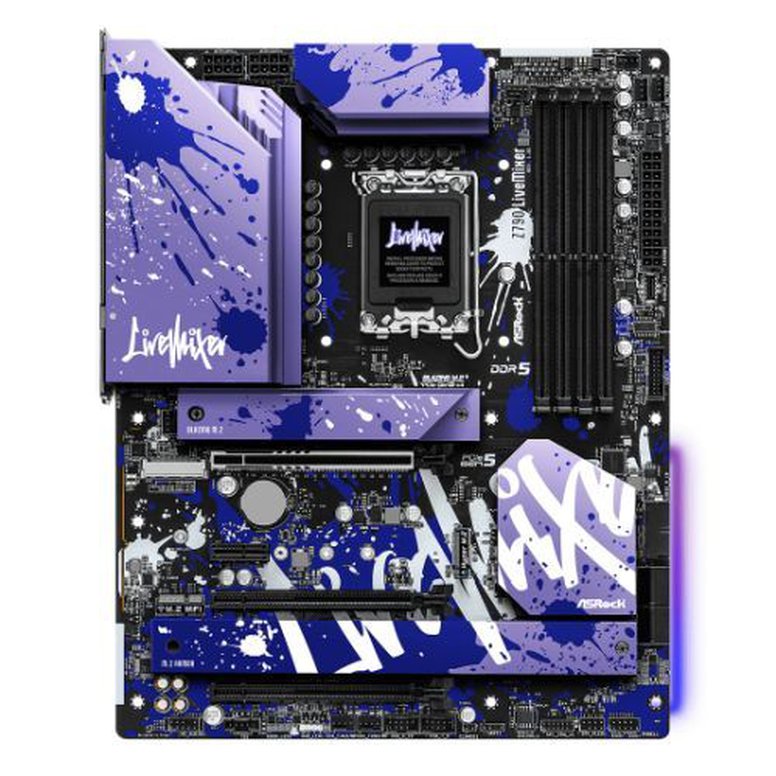

Asrock Z790 LIVEMIXER

ASROCK

Asrock Z790 LIVEMIXER, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, RGB, 5x M.2

£214.61

Out of stock

ASROCK

Asrock Z790 LIVEMIXER, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, RGB, 5x M.2

£214.61

Out of stock

Product Details

ASROCK Website

LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

Supports 13th Gen & 12th Gen Intel® Core™ Processors
14+1+1 Phase Power Design, SPS for VCore+GT
4 x DDR5 DIMMs, supports up to 6800+(OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
Realtek 2.5G LAN

Broadcasting

Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.

Content Creation

Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.

Content Creator
Video Editing
Photo Editor
Game Development

Multiple Streaming Devices

We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.

Effectiveness and Uniqueness

Provides stability and unique features enhancing effectiveness.

14 + 1 + 1 power phase with Smart Power Stage(SPS) and Nichicon 12K capacity - Optimized VRM design for solid performance
Blazing M.2[PCIe Gen5 x4] - Blazing Fast Data Transfer and Great Heat Dissipation
Lightning Gaming Ports - Mice/Keyboard control with lower jitter and latency
Ultra USB Power - Stable power and better sound experience!
Dual PCIe x4 Slots & Thunderbolt Header - Provides great connectivity for the use of capture card and Thunderbolt AIC at the same time.
PCIe 5.0 + Surface-Mount Tech

Optimizes your user experience.

DDR5 Memory - Supports DDR5 memory with max. 128GB capacity.
23 USB Ports - Provides great connectivity to multiple USB devices.
Dragon 2.5G LAN - Fulfills requirement of content creators and high-quality streaming media.
Polychrome Sync - Allows users to synchronize RGB LED devices and create their own unique lighting effects.
Nahimic Audio - Offers you the most engaging listening experience, vibrant and rich with details.
Auto Driver Installer - Allow users to download and install all necessary drivers automatically.

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 256GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
1 x eDP 1.4
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
2 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
Wireless: -
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 (4 at back*, 4 at mid-board)
10 x USB 2.0 (6 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

*USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power"
Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
6 x USB 2.0
1 x RJ-45 LAN
1 x Line Out Jack
1 x Microphone Input Jack
Internal I/O Connectors: 1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
.: 2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories: 1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
Additional Features: See Overview / Video
Package Type: Retail
Package Weight: 2.5400 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#RGB Lighting: Out of the box RGB lighting
