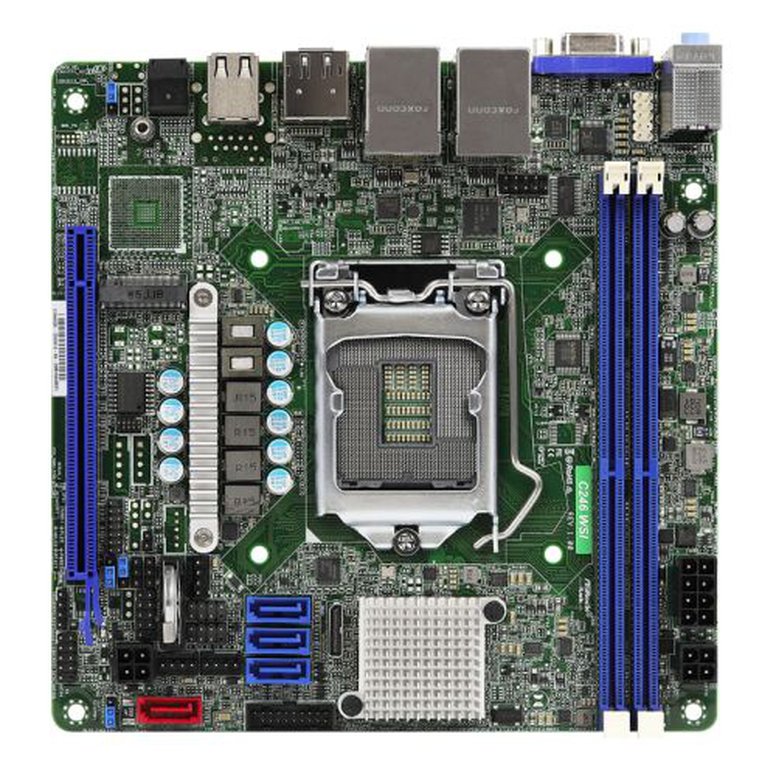

• Supports Intel Xeon E-2100 Processors
• Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB
• 4 SATA3 (1 SATA DOM included), 1 OCuLink connector with 4 SATA ports*
• Supports 1x PCIe 3.0 x16, 1 x M.2
• Supports Intel I210& Intel i219LM
• *Please contact sales to by the cable

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Mini ITX
• Socket: Intel 1151 - Coffee Lake
• Chipset: Intel C246
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 2133/2400/2666 MHz
• Maximum Memory: 32GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: PCIe 3.0 x 16 - SLOT7: Gen3 x16 link
• Storage: 4 x SATA III
  1 x M.2 (2242) - SATA & PCIe
• Wireless: -
• LAN: Dual GB LAN
• Audio: Realtek ALC892
• USB Ports Supported: 4 x USB 3.1 Gen 2 Type-A (at back)
  2 x USB 3.1 Gen 1 (at mid-board)
  2 x USB 2.0 ports (at back)
• Back Panel I/O Ports: 1 x HDMI
  1 x VGA
  2 x USB 2.0
  4 x USB 3.1 Gen2
  2 x GB LAN (by Intel i210+ Intel i219LM)
  1 x Display Port
  3+1 CH audio with SPDIF
  1 x SPDIF
• Internal I/O Connectors: "1 x COM
  1 x SATA DOM
  1 x M.2
  1 x OCuLink
  1 x Auxiliary Panel
  1 x TR1
  1 x TPM
  3 x Fan (1CPU/1Front/1Rear)
  1 x ATX (4-pin)
  1 x DC IN (8-pin)
  1 x USB 3.1 (Gen1)
  1 x Front Panel (RST, HDLED, PLED, PERBTN)"
• .: 3 x Serial ATA3
  1 x HDD Power (4-pin)
  1 x Speaker (4pin)
  1 x Serial Port (8-pin)
  2 x SGPIO Header
  1 x Clear CMOS
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8520 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
