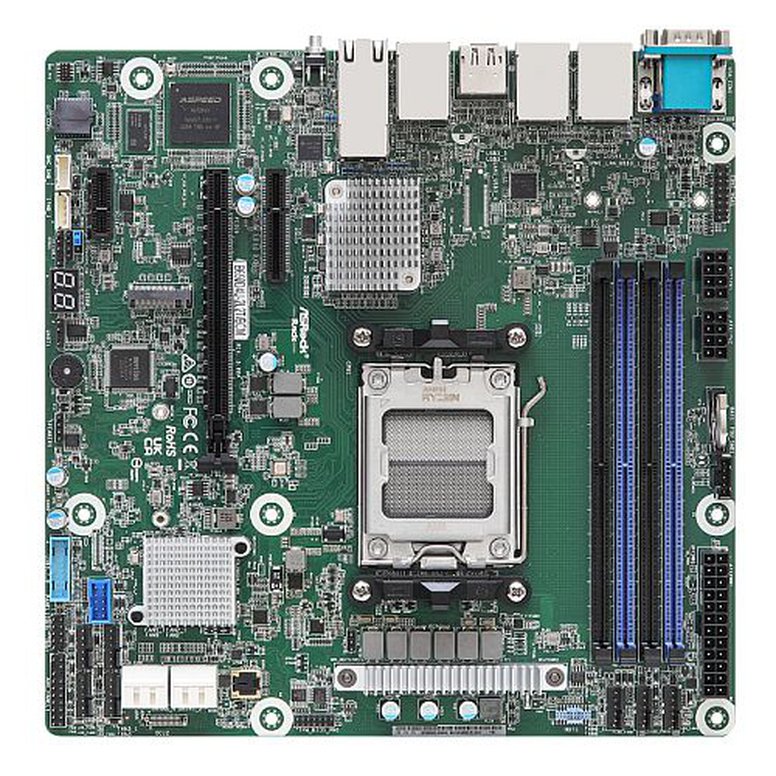

Asrock Rack B650D4U-2L2T/BCM

ASROCK_RACK

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2

£519.49

Out of stock

ASROCK_RACK

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2

£519.49

Out of stock

Product Details

ASROCK_RACK Website

B650D4U-2L2T/BCM

Micro-ATX (9.6"x 9.6")
Support AMD Ryzen 7000 series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
Supports 1 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel® i210
4 SATA 6Gb/s
1 HDMI, 1 DisplayPort
Remote management (IPMI)

System BIOS

BIOS Type:

AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM

BIOS Features:

Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5

Hardware Monitor

Temperature:

CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot

Fan:

Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

Voltage:

VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V

Environment

Temperature:

Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Humidity:

Non operation humidity: 20% ~ 90% ( Non condensing)

Product Specification

Description

Specification

Motherboard Type: Server / Workstation
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B650E
#Hide#DDR Type: DDR5
CPU Support: Supports AMD Ryzen 7000 series Processors
Single Socket AM5 (LGA 1718)
Up to 170W with proper cooling solution

Click here for CPU support list
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: "5200MHz (1DPC); 3600MHz (2DPC)
ECC/non-ECC UDIMM"
Maximum Memory: 96GB
Graphics: Yes
Graphics Ports: "ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header

AMD Processors with Graphics:
1 HDMI, 1 DisplayPort"
PCI/PCI Express: PCIe x 16 - SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 - SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1 - SLOT4: PCIe4.0 x1 [FCH]
Storage: "4 x SATA III
1 x M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]"
RAID: Yes
Wireless: -
LAN: Dual 10GB LAN & Dual GB LAN
USB Ports Supported: 4 x USB 3.2 Gen1 Type- A (at back)
Back Panel I/O Ports: 1 x UID button w/ LED
1 x DB15 (VGA)
1 x DisplayPort
1 x HDMI
1 x Serial Port DB9
4 x USB3.2 Gen1 Type-A
2 x RJ45 (10GbE)
2 x RJ45 (1GbE)
1 x dedicated IPMI
Internal I/O Connectors: "1 x 24-pin, ATX main power
2 x 8-pin, ATX 12V
1 x Auxiliary Panel Header (18-pin)
1 x System Panel
1 x VGA header
1 x Speaker Header
1 x Buzzer
7 x Fan Header (6-pin)
1 x TPM Header (13-pin, SPI)
1 x SMBus header
1 x PMBus header
1 x IPMB Header"
.: "1 x Clear CMOS
1 x 3-pin, 80 debug port header
1 x Front Lan LED Connector"
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2820 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 4 x LAN
#Hide#Max LAN Speed: 10GB LAN
