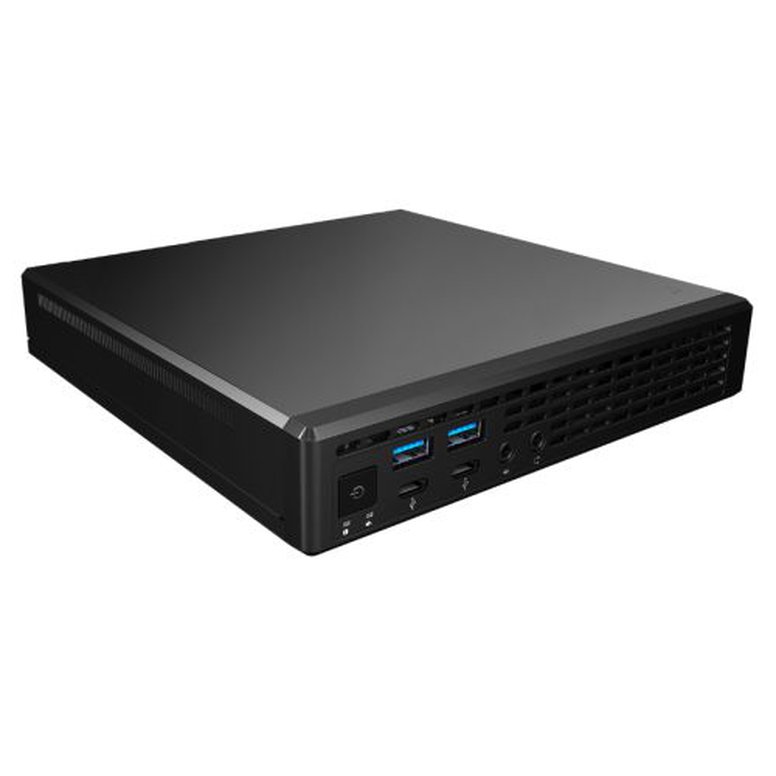

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA

ASROCK

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S

£194.12

ASROCK

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S

£194.12

Add to Cart

Product Details

ASROCK Website

Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.

AM4 Socket APUs, up to 65Watts
AMD X300 Chipset
178 x 178 x 34mm / 1.07L
2 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1
2 x USB 2.0
DisplayPort, HDMI, D-Sub
M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
M.2 (2230) slot for Wi-Fi
2W Speaker, TPM V2.0
Support DASH Standard

Advanced AM4 Platform

AMD AM4 Socket APU

Support 5000/4000/3000/2000 Series APU, up to 65W

High Speed DDR4 Memory

DDR4-3200MHz (Cezanne/Renoir)

DDR4-2933MHz (Picasso/Raven)

High Performance Thermal

Copper based heatsink

High efficiency blower

Dual Storage & Wireless

Ultra M.2 Slot

PCIe Gen3 x4 & SATA6Gb M.2 (2280)

SATA 6Gb Hard Drive Bay

Support 7mm/9.5mm height 2.5” SSD/HDD

M.2 For Wi-Fi Module

Optional Intel® AC-3168, AX200 Wi-Fi

Rich USB Connectivity

Front Side

2 x USB 3.2 Gen1 Type-C

2 x USB 3.2 Gen1 Type-A

Rear Side

2 x USB 3.2 Gen1 Type-A

2 x USB 2.0

Enhanced Creativity

3 Video Outputs

HDMI 4K@60Hz

DisplayPort 4K@60Hz

D-Sub FHD@60Hz

Supports up to 3 displays simultaneously

Enterprise Solutions

DASH LAN(optional)

Provide secure out-of-band and remote management of desktop via intranet/internet.

TPM 2.0 (optional)

Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.

Anti-Thief & Speaker

Chassis Intrusion

Get notification if chassis of Jupiter has been opened.

Native 2W Speaker

Jupiter X300 adopts amplifier and 2 watt speaker.

VESA Mount & Stand

Tri-direction VESA mount let you mount Jupiter behind monitor.

Use Vertical stand to save desk space.

Product Specification

Description

Specification

#Hide#Fully Built / Barebone: Barebone
Tower / Small Form Factor: Small Form Factor
Chassis: Asrock Jupiter Mini Desktop
Processor: None
Processor Details: Supports AMD AM4 Socket 65W APUs
Chipset: AMD X300
Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
#Hide#Processor: None
Memory: None
Memory Details: 2 x SO-DIMM DDR4
Max. 64GB (non-ECC)
Cezanne/Renoir APU – DDR4-3200MHz
Picasso/Ryzen APU - DDR4-2933MHz
Hard Drive: None
SSD Drive: None
Optical Drive: None
Supported Drives: 1 x SATA 6Gb 2.5"""" 7mm/9.5mm Hard Drive
M.2 2280 PCIe Gen3 x4 & SATA 6Gb
Operating System: No O/S
Front I/O: 2 x USB 3.1 Gen1 Type-C
2 x USB 3.1 Gen1 Type-A
1 x Head Phone with Mic Jack
1 x Mic-In
Back I/O: 1 x VGA
1 x HDMI
1 x DisplayPort
2 x USB 3.1 Gen1 Type-A
2 x USB 2.0
1 x RJ45
LAN: 1 x RJ45 Gigabit LAN
Realtek RTL8111GN
Wireless: 1 x M.2 (2230) Key-E Slot (module sold separately)
Sound: 1 x 2W Speaker
Realtek ALC233
Expansion: 1 x 4-Pin Fan Connector
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header
1 x 2-Pin Chassis Intrusion Header
Power Unit: 90W/19V Adapter
Keyboard and Mouse: No
Dimensions: Motherboard: 170 x 170 (Proprietary)
Barebone: 178 x 178 x 34 mm (1.0L)
Additional Features: Integrated cooling solution
Copper based heatsink
High efficiency blower
Kensington lock
Key lock
VESA: 75 x 75mm / 100 x 100 mm
Chassis Intrusion
Vertical stand included
Package Weight: 2.1500 kg
Package Type: Retail
Warranty: 2 Year Replacement Warranty
#Hide#Memory: DDR4
