ASROCK
Asrock H610M-H2/M.2, Intel H610, 1700, Micro ATX, 2 DDR4, 2 HDMI, GB LAN, PCIe4, 1x M.2
£58.83
Asrock H610M-H2/M.2, Intel H610, 1700, Micro ATX, 2 DDR4, 2 HDMI, GB LAN, PCIe4, 1x M.2
ASROCK
Asrock H610M-H2/M.2, Intel H610, 1700, Micro ATX, 2 DDR4, 2 HDMI, GB LAN, PCIe4, 1x M.2
£58.83
Product Details

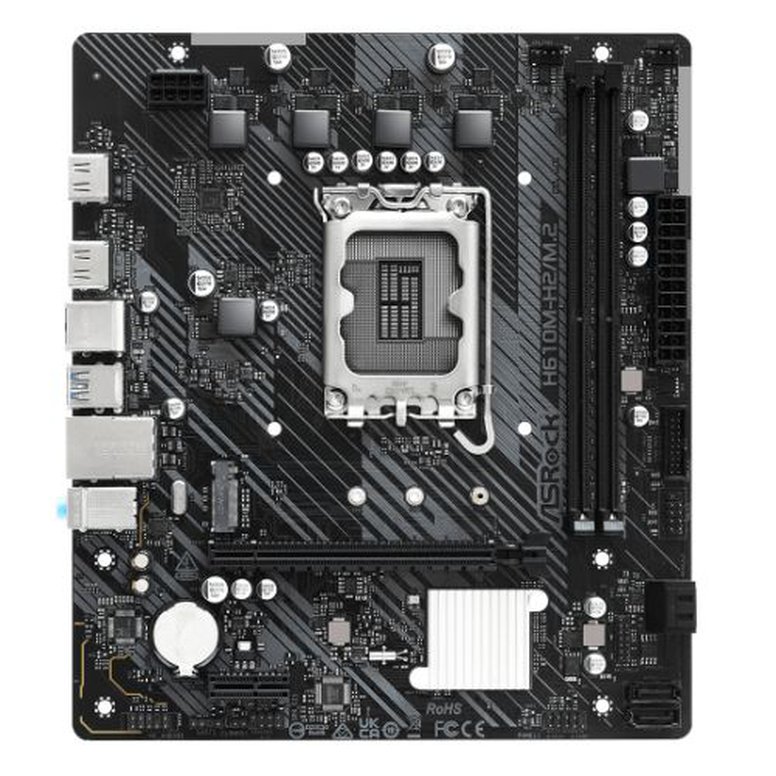

H610M-H2/M.2

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 3+1+1 Phase Power Design
  • 2 x DDR4 DIMMs
  • Supports Dual Channel, up to 3200
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer





Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.





Ultra M.2 32Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.





Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!





Dual HDMI Outputs

Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR4 (Dual Channel)
    Supports non-ECC, un-buffered memory
    Supports ECC UDIMM memory modules (operate in non-ECC mode)
    Supports Intel XMP 2.0"
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 2 x HDMI 2.1
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

    Front:
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    2 x HDMI
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 1 x I/O Shield
    2 x SATA Data Cables
    1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
