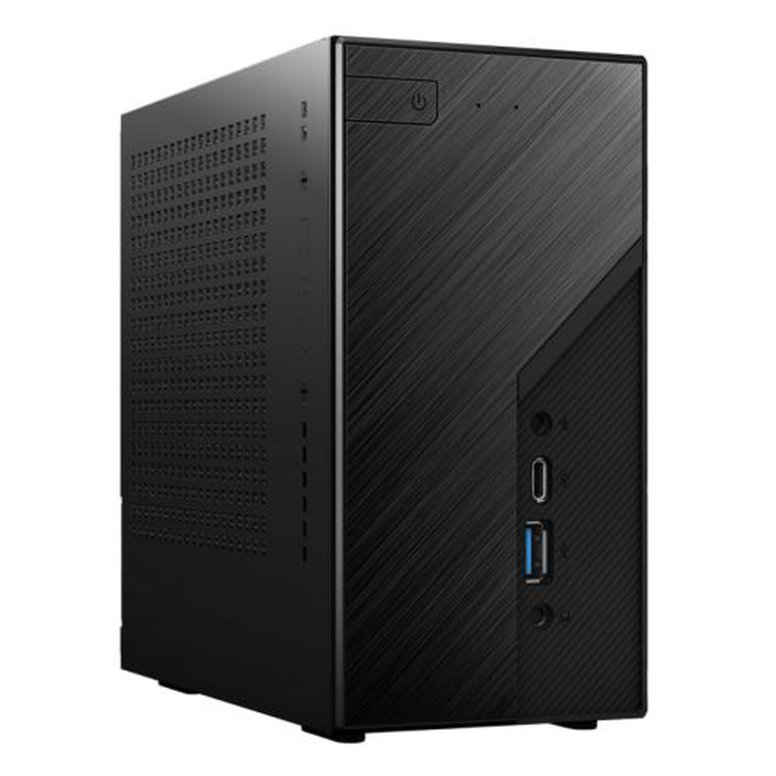

DeskMini X300
- AMD AM4 Socket CPU - Renoir, Picasso, Raven Ridge, up to 65W
- Supports Overclocking Option with X300
- High-Speed DDR4-3200MHz Memory
- Dual Ultra M.2 (NVMe)
- 2 x 2.5" SATA 6Gb Hard Drive
- Support RAID 0/1 function
- HDMI, DisplayPort, D-Sub
- M.2 For Wi-Fi Module
- USB 3.2 Gen1 Type-C
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Optional upgrades (sold seperately):
DeskMini Addressable LED
DeskMini USB Hub
Rear Audio Cable
VESA Mount Kit
M.2 Wi-Fi Kit
USB 2.0 Cable
