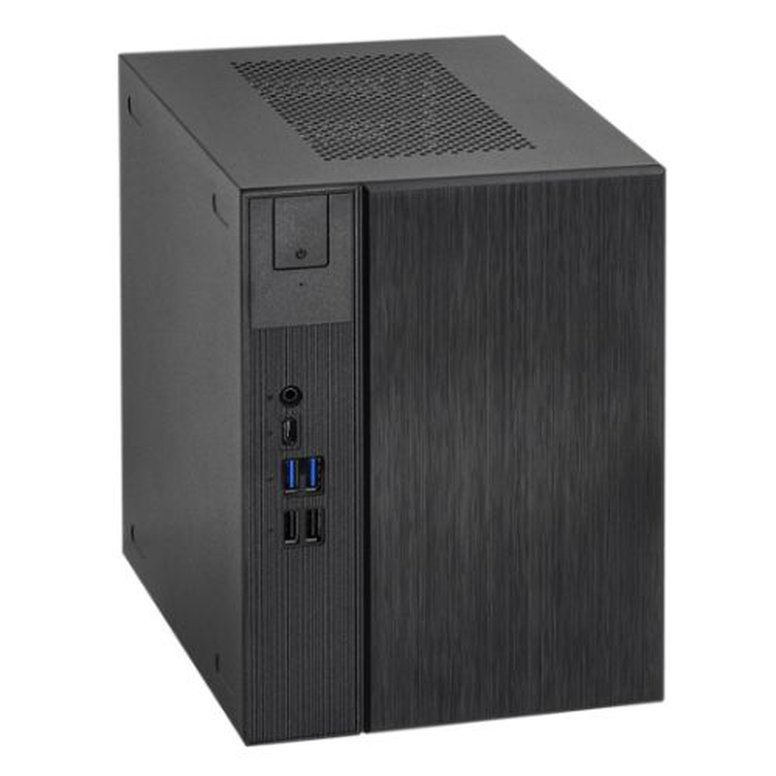

Meet the Versatile PC
With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.
- Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors, up to 65W
- Supports MAX Height 54mm CPU Cooler
- Supports 4 x DDR5 DIMMs, up to 7200+ MHz (OC), 256GB
- 1 x PCIe 4.0 x16
- Graphics Output Options:2 x DisplayPort, HDMI
- 2.5G LAN
- 2 x SATA3
- 1 x Blazing M.2 (PCIe Gen5 x4)
- 1 x Hyper M.2 (PCIe Gen4 x4)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
- 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
- 1 x M.2 Key-E for Wi-Fi
- 500W power supply (80+ Bronze)
- 8 Liter compact size
Super Processing Power
DeskMeet X600 supports the latest AMD Ryzen 8000 & 7000 Series desktop processor (up to 65W) that delivers ultimate performance for efficient work and demanding applications.
*DeskMeet has a CPU cooler height limitation of 54mm (support AMD Wraith Stealth CPU cooler)
Incredible Memory Performance
Up to 256GB of four DDR5 memory slots, DeskMeet provides a faster multitasking experience and a responsive system.
Get the server-grade performance and rock-solid durability with support of ECC un-buffered memory modules for high-end computing systems, such as scientific or financial computers.
Heatsink
DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.
Ready for Dual slot Graphics Card
DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering, AI and video editing.
Efficient Airflow Design
DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.
Expand the Configurations Potential
With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5" HDD*, 2 x 2.5" SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler (Max height of radiator + fan 45mm).
*Supports standard mounting holes 3.5" HDD only
2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Up to Four Storages
DeskMeet X600 provides up to 4 storages including 2 x SATA 6Gb ports, 1 x Hyper M.2 and 1 x Blazing M.2 slot with support of PCI Express 5.0 standard to speed up loading time for all your favorite apps.
Easy to set up and upgrade
DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.
Keep Your 3.5" HDD
DeskMeet can be equipped with 2 x 3.5" HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5" HDD to preserve personal data.
ATX Power Supply
DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.
Multi-Monitor
Up to three displays can be used simultaneously without adding an extra graphics card. With multi-screen, you can have high productivity and immersive gaming experience.
Front USB Type-C
DeskMeet features one reversible USB Type-C port in the front of the case for fast charging and data transfer.
Connectivity
Although DeskMeet's compact size, it doesn't compromise on I/O ports. It has eight Type-A USB ports to connect to all of your peripheral devices.
A Perfect Match for Content Creation
Intel Arc A380 is the world's first graphics card offering hardware-accelerated AV1 encoding. With AV1 support, you can accelerate creation tasks up to 4.4 times faster compared to software encoding.* DeskMeet equipped with Intel Arc A380 Challenger ITX 6GB OC (19cm) is the best solution for content creator, especially streamer. They can produce high quality AV1 content more efficiently and effortlessly.
Creat AI Artwork With DeskMeet
DeskMeet can let everyone use AI art generators to create stunning works of art.*
Portable PC for Various Applications
With only 8 liters and 168mm in width, DeskMeet is a portable PC that you can place it in dormitory or hand baggage* when taking a trip to play video game at the hotel room. DeskMeet offers a wide range of uses for any scenario.
*The total weight of DeskMeet is 4.5kg (All components, graphics card and PSU are installed) which does not exceed 7kg weight limit for hand baggage.
DeskMeet Addressable LED (Sold Separately)
Exclusive Addressable RGB LED Strip for ASRock DeskMeet Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.
*The availability of ARGB LED Strip may vary by region.
M.2 Wi-Fi Kit (Sold Separately)
ASRock M.2 Wi-Fi Kit includes Intel M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMeet.
EZ Setting
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
