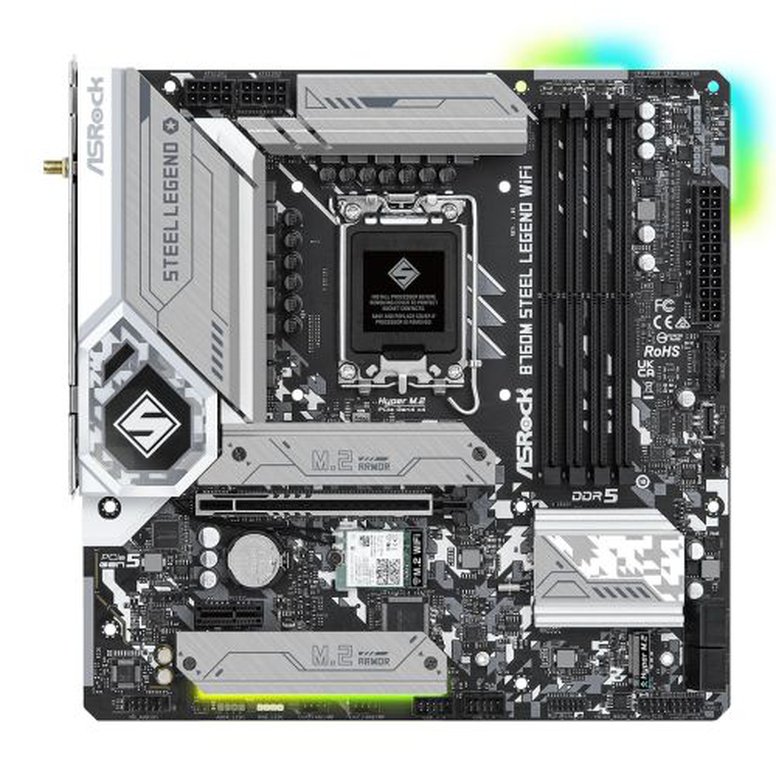

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
Optimized VRM Design
Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
12+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Audio That Matters Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution(PCIe Gen4 x4) Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Wireless Networking Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
M.2 Key-E Module Cap
SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.
EZ Setting Auto Driver Installer Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
