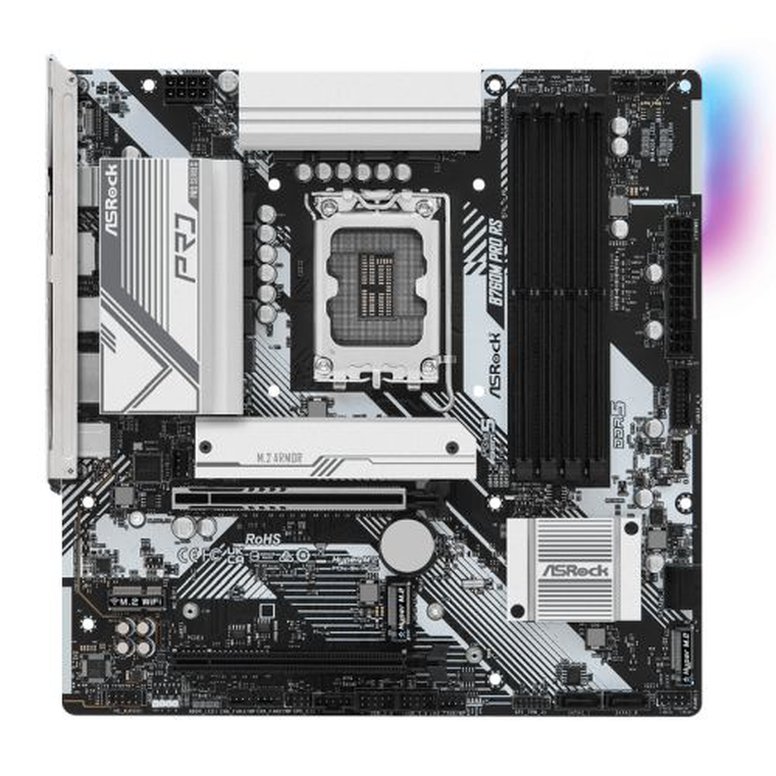

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 10+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
- 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
- 1 M.2 (PCIe Gen4x2)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 4 USB 2.0 (2 Rear, 2 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
10+1+1 Power Phase Design + Dr.MOS
Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.
DDR5 Memory Technology
A trouble free protection circuit design on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe Gen5 Technology
Ready to unleash the full potential of future high end graphics cards.
Auto Driver Installer
The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically.
Pre-Installed I/O Shield
ASRock pre-installs the I/O shield for you as an assembly helper to speed up the set-up process.
USB 3.2 Type-C (Front + Rear)
USB 3.2 Gen2 Type-C that delivers up to 10Gbps data transfer rate.
DRAGON 2.5Gbps LAN
Enjoy the faster connectivity experience for gaming, file transfers and backups.
