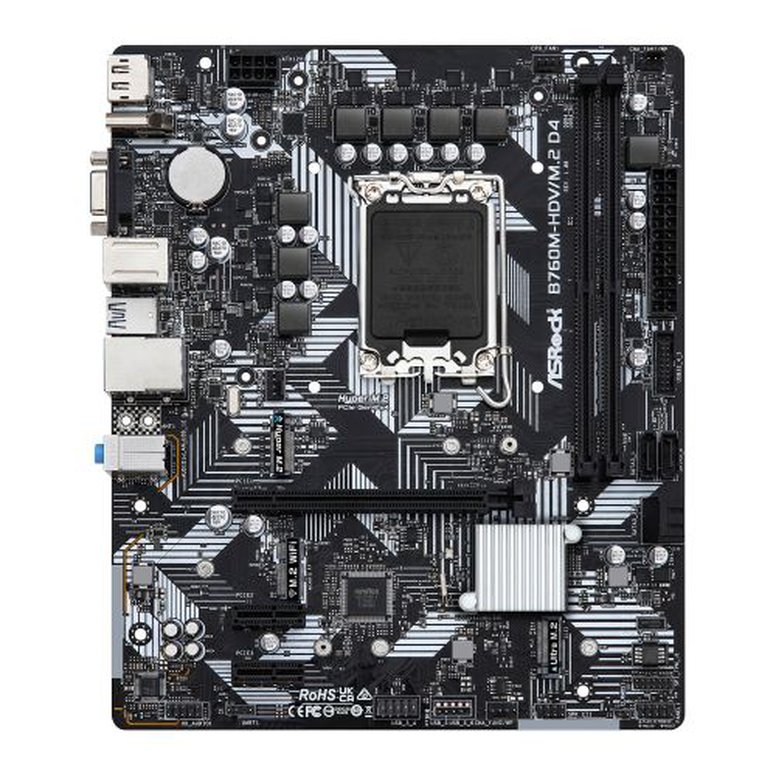

Asrock B760M-HDV/M.2 D4

ASROCK

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

£76.46

ASROCK

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

£76.46

Add to Cart

Product Details

ASROCK Website

B760M-HDV/M.2 D4

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
5+1+1 Power Phase
Supports DDR4 5333MHz (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
1 Ultra M.2 (PCIe Gen3x4 & SATA)
1 USB 3.2 Gen1 Type-C (Rear),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
5 USB 2.0 (2 Rear, 3 Front)
Realtek 1G LAN
Supports ASRock Auto Driver Installer

5+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel B760
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 5333+(OC)
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices"
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
5 x USB 2.0 (2 at back, 3 at mid-board)"
Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.9000 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN
