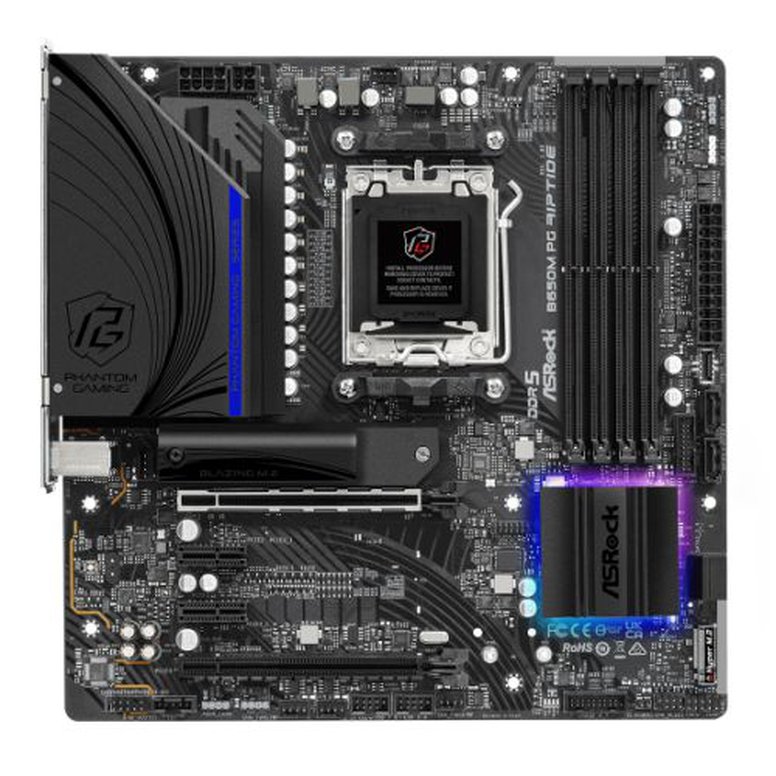

Asrock B650M PG RIPTIDE

ASROCK

Asrock B650M PG RIPTIDE, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 2x M.2

£145.70

ASROCK

Asrock B650M PG RIPTIDE, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 2x M.2

£145.70

Add to Cart

Product Details

ASROCK Website

B650M PG Riptide

Supports AMD Ryzen™ 7000 Series Processors
12+2+1 Phase Power Design, Dr.MOS
4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3
1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

12+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 Memory With Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B650
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6200+(OC)
Maximum Memory: 256GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
RAID: "Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
Wireless: -
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at back) (Lightning Gaming Ports)
4 x USB 3.2 Gen1 (at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector"
Back Panel I/O Ports: 1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1 (Lightning Gaming Ports)
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
.: 2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1
Accessories: 1 x User Manual
2 x SATA Data Cables
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.0100 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#RGB Lighting: Out of the box RGB lighting
