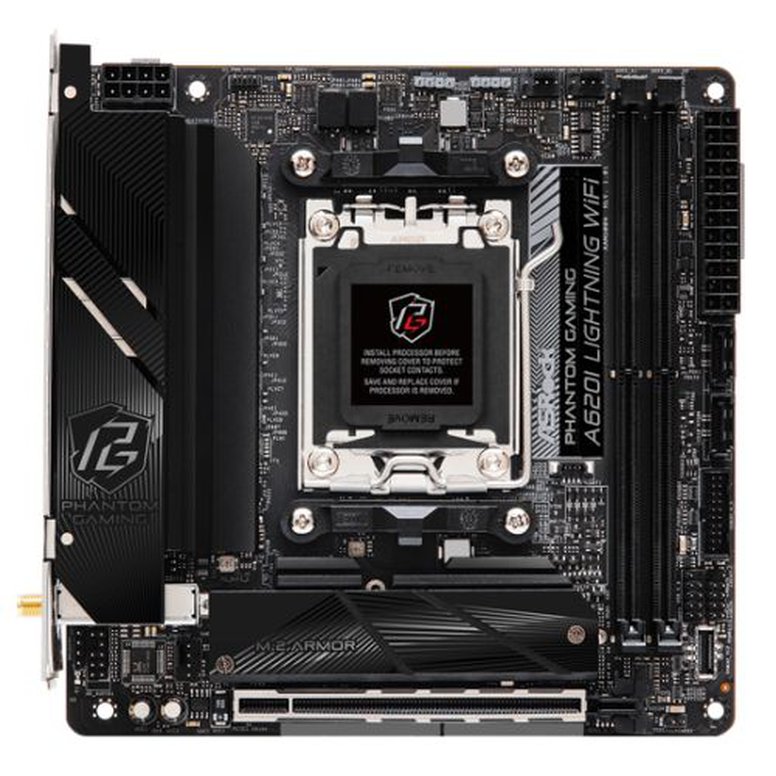

Asrock A620I LIGHTNING WIFI

ASROCK

Asrock A620I LIGHTNING WIFI, AMD A620, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

£139.22

ASROCK

Asrock A620I LIGHTNING WIFI, AMD A620, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

£139.22

Add to Cart

Product Details

ASROCK Website

A620I Lightning WiFi

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
2 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3 x4)
1 USB 3.2 Gen2 Type-C (Rear),
2 USB 3.2 Gen2 Type-A (Rear),
1 USB 3.2 Gen1 Type-C (Front),
3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front)
Phantom Gaming 2.5G LAN
802.11ax WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer, BIOS Flashback

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: AMD AM5
Chipset: AMD A620
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
Supports Extreme Memory Profile (XMP)
Supports Extended Profiles for Overclocking (EXPO
RAM Slots: 2 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
Storage: 2 x SATA III
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 3.0 x4
RAID: "Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: Rear:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A*
1 x USB 3.2 Gen1 Type-A*
2 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

*USB32_23 are Lightning Gaming Ports
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors: 2 x Addressable LED
2 x CPU/Water Pump Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1
Accessories: 1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2000 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
