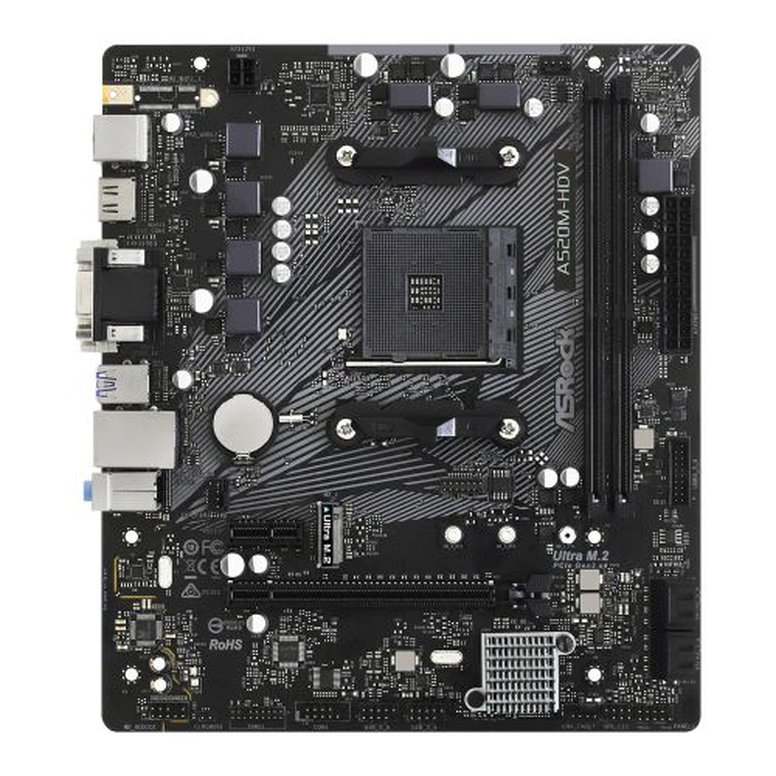

Asrock A520M-HDV

ASROCK

Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

£53.90

ASROCK

Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

£53.90

Add to Cart

Product Details

ASROCK Website

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM4
Chipset: AMD A520
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum Memory: 64GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
Multi-GPU Support: -
PCI/PCI Express: 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)"
Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories: 2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.7920 kg
Warranty: 2 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN
