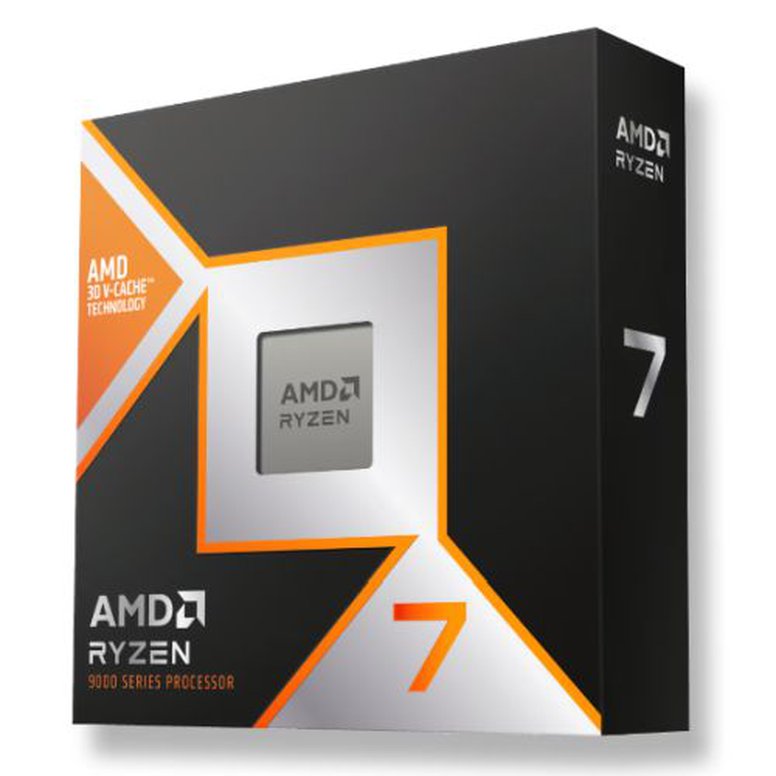

AMD Ryzen 7 9800X3D CPU, AM5, 4.7GHz (5.2 Turbo), 8-Core, 120W, 104MB Cache, 4nm, 9th Gen, Radeon Graphics, NO HEATSINK/FAN

AMD

£490.17

Out of stock

AMD

AMD Ryzen 7 9800X3D CPU, AM5, 4.7GHz (5.2 Turbo), 8-Core, 120W, 104MB Cache, 4nm, 9th Gen, Radeon Graphics, NO HEATSINK/FAN

£490.17

Out of stock

Product Details

AMD Website

Market Segment: Enthusiast Desktop
Former Codename: Granite Ridge AM5
Architecture: Zen 5
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 5.2 GHz
Base Clock: 4.7 GHz
L1 Cache: 640 KB
L2 Cache: 8 MB
L3 Cache: 96 MB
Default TDP: 120W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C
OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Product Specification

Description

Specification

Socket: AM5
Type: AMD Ryzen 7
Clock Speed: 4.7GHz
Turbo Speed: 5.2GHz
#Hide#Generation: Ryzen 9th gen
Cores: 8 Core
Core Size: CPU Cores:TSMC 4nm FinFET
I/O Die: TSMC 6nm FinFET
Threads: 16
Cache: L1 Cache: 640KB
L2 Cache: 8MB
L3 Cache: 96MB
TDP: Default: 120W
Graphics: Yes
Graphics Details: AMD Radeon Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C DisplayPort Alternate Mode support
Memory: Memory Channels: 2
Max. Memory: 192GB
System Memory Subtype: UDIMM

Max Memory Speed:
2x1R - DDR5-5600
2x2R - DDR5-5600
4x1R - DDR5-3600
4x2R - DDR5-3600
Max PCI Express Lanes: 28/24 (Total/Usable)
Cooler: No
Special Features: AMD EXPO Technology
AMD Ryzen Technologies
2nd gen AMD 3D V-Cache technology
Package Type: Retail
Package Weight: To be confirmed
Warranty: 3 Years
